Part Number(s)
IntelliTouch (Worldwide) – E700813
IntelliTouch (EMEA) – E399324
AccuTouch (Worldwide) – E210772
AccuTouch (EMEA) – E344320
AccuTouch (China) – E109123
Enclosure Color
Dark Gray
Touch Technology & Capacity
5-Wire Resistive (AccuTouch®) – Single-Touch
SAW (IntelliTouch® Surface Acoustic Wave) – Single Touch
Diagonal Size
15” diagonal, Active matrix TFT LCD (LED)
Aspect Ratio
4:3
Active Area (mm)
12.0″ x 9.0″ / 304mm x 228mm
Resolution
1024 x 768 @ 60, 70, 75 Hz, 65 Hz (Sun)
Other Supported Resolutions
640 x 350 70 Hz
640 x 480 60, 72, 75 Hz
640 x 480 66 Hz (Mac)
720 x 400 at 70 Hz
800 x 600 at 56, 60, 72 or 75 Hz
832 x 624 at 75 Hz (Mac)
1024 x 768 65 Hz (Sun)
1024 x 768 60, 70, 75 Hz
Viewing Angle
Horizontal: ±80° or 160° total / Vertical: ±70° or 140° total
Number of Colors
16.7 million
Brightness (typical)
LCD panel: 250 nits
AccuTouch: 200 nits
IntelliTouch: 225 nits
Response Time-total (typical)
8 msec
Contrast Ratio
800:1
Input Video Format
Analog VGA
Input Video Signal Connector
Mini D-Sub 15-Pin VGA type
Power Supply
Internal AC, Optional external DC (power brick)
Input Voltage
AC: 100-240 VAC, 50/60 Hz; DC: +12VDC ±5%
Input Connector
AC: IEC 60320 C6 / DC: Coaxial power jack (2 mm pin diameter, 6.4 mm barrel diameter, 8.8 mm barrel length)
Input Frequency
Horizontal: 31.5-60.2 kHz / Vertical: 56.3-75 Hz
Power Consumption (Typical)
15.5W
Speakers
No Speakers
On Screen Display
Controls (side): menu, up, down, select, power
Settings: contrast, brightness, H/V position, RGB (color temp), clock, phase, recall
Languages
English, German, Spanish, Japanese, French
Lockouts
Power, user controls
Monitor Dimensions (with Stand)
13.8″ x 12.2″ x 6.9″ / 350mm x 310mm x 175mm
Shipping Box Dimensions
17.52″ x 14.96″ x 10.24″ / 445mm x 380mm x 260mm
Weight (with stand)
10.6 lb / 4.8 kg
Weight (without stand)
7.3 lb / 3.3 kg
Shipping Weight (With stand)
15.4 lb / 7.0 kg
Operating Temperature
0°C to 40°C / 32°F to 104°F
Storage Temperature
-20°C to 60°C / -4°F to 140°F
Humidity
Operating: 20% to 80%; Storage: 10% to 90%
Sealability
Touchscreen sealed to bezel
Touchscreen sealed to LCD
MTBF
50,000 hours demonstrated
Mounting Options
75 mm VESA mount
Threaded-through mounting holes, under stand
Other Features
Security lock receptacle
Warranty
3-year
Extended Service Options
4 year warranty coverage – Elo P/N: E898247
5 year warranty coverage – Elo P/N: E898449
3 year warranty coverage + AUR – Elo P/N: E898648
4 year warranty coverage + AUR – Elo P/N: E894921
5 year warranty coverage + AUR – Elo P/N: E895125
Regulatory approvals and declarations
North America / Worldwide Models: UL, cUL, FCC, IC, CE, UKCA, CB, Semko or Demko, VCCI, RCM
Asia Models: UL, cUL, FCC, IC, CE, UKCA, CB, Semko, VCCI, RCM, BSMI, CCC, KC, China RoHS
What’s in the Box
E210772/ E700813:

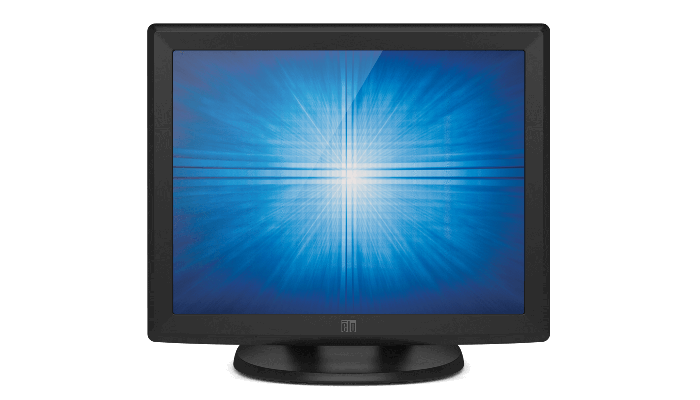

1515L monitor
Quick Install Guide
User Manual CD
VGA Cable (DB-15 male to DB-15 male)
Touch USB Cable (USB Type A plug to USB Type B plug)
power cable, IEC 60320-C5 to NA plug
E344320/ E399324:
1515L monitor
Quick Install Guide
User Manual CD
VGA Cable (DB-15 male to DB-15 male)
Touch USB Cable (USB Type A plug to USB Type B plug)
power cable, IEC 60320-C5 to UK/EU plug
Replacement DC Power Supply
The monitor may also be powered with DC voltage. An optional 12V DC power brick, part number E005277, is available at additional cost.
AC Power Cable
A North American power cable (E604766) is included with the part numbers available in the regions other than EMEA. European and UK AC power cables are included with the part numbers available for the EMEA region. AC power cables for power brick are also available at at additional cost:
United States: E042259
Europe: E690013
United Kingdom: E235317
Optional IntelliTouch Stylus Pen
Stylus pen with rubber tip, designed specifically for use with IntelliTouch or iTouch surface wave touch technology. Part number D82064-000, available at additional cost.
Touch/Video/Audio/Accessory Cables:
USB touch cable and VGA video cable are included.
Optional Peripherals
Magnetic Stripe Reader (Dark Gray MSR) – Elo P/N: E177037
Optional Stand
Part number E245090, available at additional cost.
