Part Number(s)
TouchPro PCAP (clear with anti-friction) – E531934
Infrared (clear) – E532139
Enclosure Color
Black
Touch Technology & Capacity
PCAP (TouchPro® Projected Capacitive) – 40 Touch with Palm Rejection and Touch Thru capability
Infrared – 20 Touch
Touch Thru
TouchPro PCAP supports up to 6mm glass/3mm plastic with up to 2 touches. Supports gloves up to 1.4mm
Touch Interfaces
USB-C
Diagonal Size

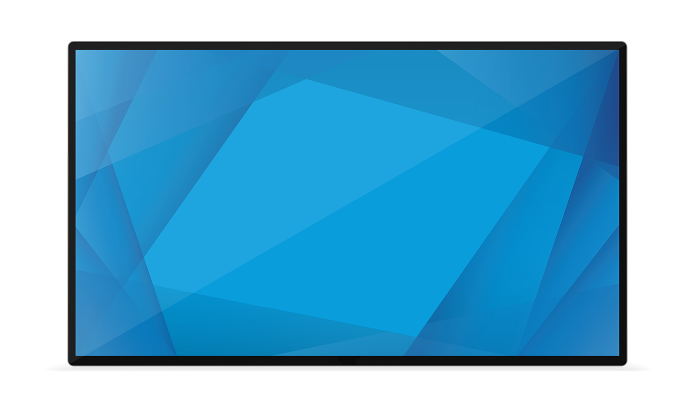

55” diagonal, Active matrix TFT LCD (LED)
Active Area (mm)
47.62″ x 26.79” / 1209.6 mm x 680.4 mm
Aspect Ratio
16:9
Resolution
1920 x 1080 @ 60hz
Other Supported Resolutions
640×480 60Hz
800×600 56/60Hz
1024×768 60Hz
1280×720 60Hz
1280×960 60Hz
1280×1024 60Hz
1920×1080 50/60Hz
Viewing Angle
Horizontal: ±89° or 178° total / Vertical: ±89° or 178° total
Number of Colors
8-bit + FRC (1.07 billion)
Brightness (typical)
LCD Panel: 450 nits
PCAP: 382 nits
IR: 405 nits
Response Time-total (typical)
8 msec
Contrast Ratio
4000:1
On Screen Display
Let’s Get Started: Language Selection, Time Setting, Time Zone
Video Source Select: HDMI-1, HDMI-2, DisplayPort, USB-C, Internal-PC DP, Internal-PC HDMI
Video Settings: Video Port Discovery, Brightness, Contrast, Black Level, Sharpness and Aspect Ratio can be selected
Color Settings: Color Temperature, Color Sensor, User Preset (for color), Picture Modes and HDMI Full Range are available in this menu.
Audio Settings: Audio Input, Audio Output, Mute, Volume selection are available here.
Power: Power Loss Behavior, Power Lock, Energy Saving Mode, Power Status Light options are available here
Time: Time Set, On/Off Schedule
OSD Settings: Recall Defaults, OSD Timer, OSD Language, OSD Lock and OSD Portrait Rotation, Touch Switch, Tabletop
Information: Monitor, Temperature, Help and Support are available here
See user manual for full details.
I/O Ports
HDMI 1.4 x2
USB-C (for Touch and video)
RJ45 (for optional OSD remote)
DisplayPort 1.2
3.5mm TRS jack (for RS232)
3.5mm Audio Headphones out
Elo Edge Connect Micro USB 2.0 x4
Control Buttons
Power
Video Source Selection
On Screen Display
Video
2x HDCP-capable HDMI on Type A connector (HDR feature support)
DisplayPort 1.2 connector
USB-C connector
Input Video Horizontal Sync frequency range: 30 – 69KHz
Input Video Vertical Sync (frame rate) frequency range: 24 – 64Hz
Headphone Output Connector
3.5 mm TRS jack
Speakers
2 x 10 W stereo speakers
Power
Input connector (power): IEC 60320-C13
Input signal specifications (power): 100-240VAC 50/60Hz
Maximum Operating Time
24 hours/day
Power Consumption (Typical)
Monitor + AC/DC adapter:
ON: 81 W
SLEEP: 1.8 W
OFF: 0.3 W
Monitor with ECMG4 + AC/DC adapter:
ON: 207 W
SLEEP: 8.6 W
Dimensions
TouchPro PCAP: 50.07″ x 29.24″ x 3.15″ / 1271.8 mm x 742.6 mm x 80 mm
IR: 50.07″ x 29.24″ x 3.54″ / 1271.8 mm x 742.6 mm x 89.8 mm
Shipping Box Dimensions
55.12″ x 36.61″ x 9.61″ / 1410 mm x 930 mm x 244 mm
Weight (Unpackaged)
TouchPro PCAP:
With ECMG4: 81.76 lbs / 37.09 Kg
Without ECMG4: 77.69 lbs / 35.24 Kg
IR:
With ECMG4: 82.67 lbs / 37.50 Kg
Without ECMG4: 80.79 lbs / 36.65 Kg
Weight (Packaged)
TouchPro PCAP:
Without ECMG4: 93.18 lbs / 42.27 Kg
IR:
Without ECMG4: 93.93 lbs / 42.61 Kg
Operating Temperature
Portrait/Landscape Tilt (≤15°) Mode: 0°C to 40°C / 32°F to 104°F
Table top Mode: 0° C to 35° C / 32°F to 95°F
Storage Temperature
-20°C to 60°C / -4°F to 140°F
Humidity
Operating: 20% to 80%
Storage: 10% to 95% (38.7°C max wet bulb temperature)

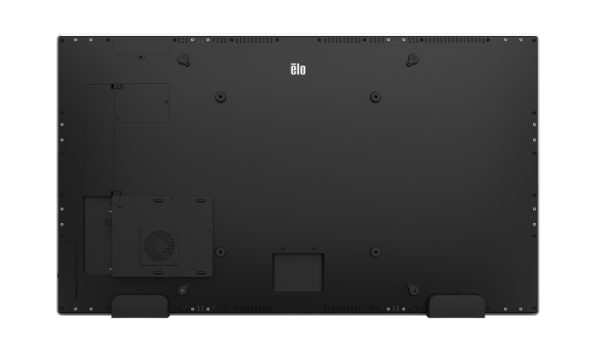

Mounting Options
VESA 400 x 400mm, M6
VESA 600 x 600mm, M8
Sealability
Touchscreen sealed to bezel
Touchscreen sealed to LCD
MTBF
50,000 hours demonstrated
Warranty
3-year with AUR included
Extended Service Options
4 year warranty coverage + AUR – Elo P/N: E740135
5 year warranty coverage + AUR – Elo P/N: E740330
3 year warranty coverage + OSE – Elo P/N: E740527
4 year warranty coverage + OSE – Elo P/N: E740728
5 year warranty coverage + OSE – Elo P/N: E740918
Regulatory approvals and declarations
UL 62368-1
FCC (US)
cUL, IC (Canada)
CB (International safety) (IEC/EN60950-1+IEC/EN62368-1)
CE (Europe)
VCCI (Japan)
RCM (Australia)
CCC, China RoHS (China) (for TouchPro version only)
IK07 and UL60950 for ball drop test
EAC (Russia)
NOM (Mexico)
Energy Star
8.0
Other Features
Ambient Light Sensor – changes panel color to match ambient light, Auto Wake
What’s in the Box
Quick Install Guide
HDMI 2.0 cable (Type A plug to Type A plug)
USB cable (Type A plug to Type C plug)
Power cable, IEC 60320-C5 to NA plug
Power cable, IEC 60320-C5 to EU/KR plug
Power cable, IEC 60320-C5 to UK plug
Serial 3.5mm male to Serial DB9 female cable (MDC Cable)
Energy label according to EU Regulation 1062/2010
IDS Optional Accessories
Temperature Sensor Pro – Elo P/N: E534879
2D Barcode Scanner (SE4720) – Elo P/N: E384627
2D Barcode Scanner (SE4107) – Elo P/N: E245047
Magnetic Stripe Reader – Elo P/N: E001002
NFC/RFID Reader – Elo P/N: E001004
EMV Cradle for Ingenico ICMP – Elo P/N: E200788
EMV Cradle for Verifone E355 – Elo P/N: E201363
EMV Cradle for MagTek eDynamo – Elo P/N: E375343
EMV Cradle for Ingenico RP457c (with Audio Jack, BT and USB) – Elo P/N: E586981
EMV Cradle for Ingenico RP457c (with BT and USB) – Elo P/N: E710930
Fingerprint Scanner – Elo P/N: E134286
Wired OSD Remote – Elo P/N: E483757
Passive Stylus – Elo P/N: E727568
Active PCAP Stylus – Elo P/N: E216215
Replacement Cable Kit – Elo P/N: E141067
i5-7500 ECMG4 with No OS – Elo P/N: E227895
i5-7500 ECMG4 with Win10 (LTSC) – Elo P/N: E228087
i5-7500 ECMG4 with Win10 (SAC) – Elo P/N: E725044
i5-7500 ECMG4 with Win10 (LTSC) with DisplayNote Montage Software – Elo P/N: E898841
i5-7500 ECMG4 with Win10 (SAC) with DisplayNote Montage & Launcher Software & Qwizdom Whiteboard Software – Elo P/N: E405488
Elo Conference Camera – Elo P/N: E277819
Wallmount – Elo P/N: E727774
Huddle Kit – Elo P/N: E380925
Status Light (Micro-USB Connectivity) – Elo P/N: E644767
Elo Backpack® 4 (Value Model)- Elo P/N: E393754
Elo Backpack® 4 (Standard Model) – Elo P/N: E393359
