Part Number(s)
Standard Model: E391994
Value Model: E392386

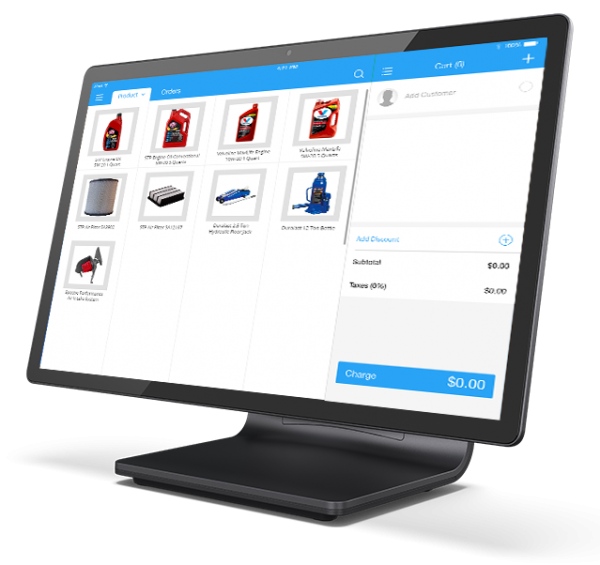

Z10 POS Stand: E398278
Enclosure Color
Dark Gray Metallic
Touch Technology & Capacity
PCAP (TouchPro® Projected Capacitive) – 10 Touch
Processor
Standard Model: Qualcomm Snapdragon SDA660
Value Model: Rockchip RK3399
Memory (RAM)
4GB
Storage
Standard Model: 64GB
Value Model: 32GB
OS
Android 10 with Google Play Services and EloView content deployment and management
Diagonal Size
15.6” diagonal, Active matrix TFT LCD (LED)
Aspect Ratio
16:9
Active Area (mm)
13.55″ x 7.62″ / 344 mm x 194 mm
Resolution
1920 x 1080 @ 60Hz
Number of Colors
8-bit (16.7 million)
Brightness (typical)
Standard Model:
LCD Panel: 350 nits
TouchPro PCAP: 280 nits
Value Model:
LCD Panel: 350 nits
TouchPro PCAP: 280 nits
Response Time-total (typical)
20 ms
Contrast Ratio
1000:1
Viewing Angle
Horizontal: ±85° or 170° total / Vertical: ±85° or 170° total
I/O Ports
DC Input
4 x USB-A 3.0 (900mA)
RJ45 Ethernet LAN (Gigabit)
Webcam
5MP
Max Resolution: 1920×1080 30fps
Auto Focus
Wireless
802.11a/b/g/n/ac + Bluetooth 5.0
Audio Ports
Standard Model: 2x built-in Digital Microphones
Value Model: 1x built-in Analog Microphone
Speakers
Standard Model: 2x 0.7W
Value Model: 2x 1W
Power Supply
AC input voltage: 100-240 VAC
Input frequency: 50-60 Hz
Power Consumption (Typical)
Standard Model:
On: 16W
Off: 0.4W
Sleep: 10.3W
Value Model:
On: 10.3W
Off: 0.68W
Sleep: 5.5W
Dimensions
I-Series 4 Slate
Standard Model: 14.6″ x 8.7″ x 0.52″ / 370.2 mm x 221.2 mm x 13.1 mm
Value Model: 14.5″ x 9.04″ x 0.55″ / 368.5 mm x 229.5 mm x 13.95 mm
Z10 Stand: 6.9″ x 4.9″ x 5.3″ / 175 mm x 200.7 mm x 134.6 mm
Shipping Box Dimensions
I-Series 4 Slate: 17.44″ x 12.20″ x 6.14″ / 443 mm x 310 mm x 156 mm
Z10 Stand: 8.19″ x 11.8″ x 11.2″ / 208 mm x 300 mm x 285 mm
Weight (Unpackaged)
I-Series 4 Slate: 8.38 lbs / 3.8 kg
Z10 POS Stand: 3.63 lbs / 1.65 kg
Weight (Packaged)
I-Series 4 Slate: 12.13 lbs / 5.5 kg
Z10 POS Stand: 4.41 lbs / 2.0 kg
Operating Temperature
0°C to 40°C / 32°F to 104°F
Storage Temperature
-20°C to 50°C / -4°F to 122°F
Humidity
Operating: 20% to 80%
Storage: 5% to 95%
Regulatory approvals and declarations
UL/cUL (US)
FCC (US)
IC (Canada)
CE (Europe)
CB (International)
VCCI, MIC (Japan)
RCM (Australia)
Supported Countries
Canada, USA, Australia, Japan, South Korea, New Zealand, Austria, Belgium, Czech Republic, Denmark, France, Germany, United Kingdom, Hungary, Italy, Netherlands, Poland, Portugal, Romania, Spain, Sweden, Switzerland, Turkey
Real-Time Clock
lithium coin cell battery
MTBF
50,000 hours demonstrated
Mounting Options
VESA 75mm
Warranty
2-year
Extended Service Options
I-Series 4 Slate
3 year OS 360 – Elo P/N: E873133
5 year OS 360 – Elo P/N: E873326
3 year Warranty Coverage – Elo P/N: E819394
4 year Warranty Coverage – Elo P/N: E819598
5 year Warranty Coverage – Elo P/N: E819795
3 year Warranty Coverage + ADP – Elo P/N: E130329
4 year Warranty Coverage + ADP – Elo P/N: E130530
5 year Warranty Coverage + ADP – Elo P/N: E130719
3 year Warranty Coverage + ADP + OS 360 – Elo P/N: E130908
4 year Warranty Coverage + ADP + OS 360 – Elo P/N: E131109
5 year Warranty Coverage + ADP + OS 360 – Elo P/N: E131294
2 year Warranty Coverage + AUR – Elo P/N: E819985
3 year Warranty Coverage + AUR – Elo P/N: E820186
4 year Warranty Coverage + AUR – Elo P/N: E820388
5 year Warranty Coverage + AUR – Elo P/N: E820582
2 year Warranty Coverage + AUR + ADP – Elo P/N: E131490
3 year Warranty Coverage + AUR + ADP – Elo P/N: E131674
4 year Warranty Coverage + AUR + ADP – Elo P/N: E131859
5 year Warranty Coverage + AUR + ADP – Elo P/N: E132053
2 year Warranty Coverage + AUR + ADP + OS 360 – Elo P/N: E132245
3 year Warranty Coverage + AUR + ADP + OS 360 – Elo P/N: E132432
4 year Warranty Coverage + AUR + ADP + OS 360 – Elo P/N: E132627
5 year Warranty Coverage + AUR + ADP + OS 360 – Elo P/N: E132811
Z10 POS Stand
3 year warranty coverage – Elo P/N: E375367
4 year warranty coverage – Elo P/N: E375573
5 year warranty coverage – Elo P/N: E375771
2 year warranty coverage + AUR – Elo P/N: E375970
3 year warranty coverage + AUR – Elo P/N: E376169
4 year warranty coverage + AUR – Elo P/N: E376362
5 year warranty coverage + AUR – Elo P/N: E376547
OS Support
Complimentary security updates provided for the first three months.
Optional extended coverage available with Elo OS 360 package.
Sealability
Standard Model: Touchscreen optically bonded to LCD
Value Model: Touchscreen sealed to LCD
What’s in the Box
I-Series 4 Slate
IO Hub
North American Power Cable
European Power Cable
1x Power Brick 65W (E153026)
Quick Install Guide
4 x M4x6 mm Flathead screws in a plastic bag
4 x M4x6 mm Panhead screws in a plastic bag

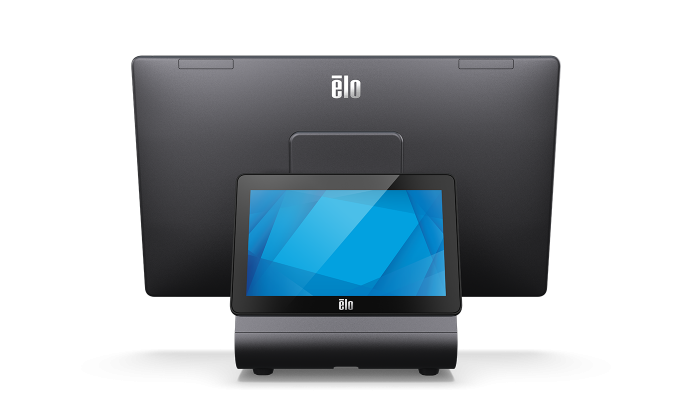

Z10 POS Stand
4 x M4 screws for attaching the head to the stand
CFD Mounting Cover
Quick Install Guide
Stands, Mounts & Kits
I/O Hub – 4x USB 3.0 ports, 1x RJ45 Ethernet LAN (Gigabit) – Elo P/N: E682436
0702L – Elo P/N: E796382
